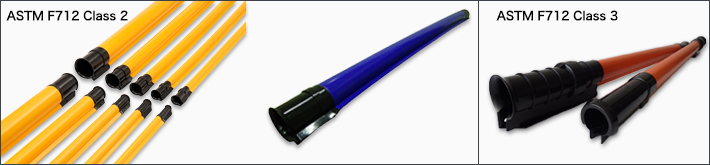

Polyethylene Conductor Cover
PRODUCT DESCRIPTION
・Designed to provide mechanical protection and visual warning for aerial electric lines.
・Compliant with ASTM F712 Class 2 and Class 3.
・Light weight and excellent UV properties.
・Available in a Variety of ID and lengths .
・Two layers, black inner layer and high visibility outer layer.
・The product must be taken out of service when the outer layer is worn and the black inner is visible.
・Easy to install and secure interlocking (male/female).
*Please contact us if you need your company name or mark on the product.
SPEC
| Description | Inner Diameter(mm) | Length(mm) | Coupling color | |
|---|---|---|---|---|
| ASTM F712 Class 2 | Yellow | 25 | 2,000 | Black |
| 2,500 | Black | |||
| 3,000 | Black | |||
| 5,000 | Black | |||
| 35 | 2,000 | Black | ||
| 2,500 | Black・Blue | |||
| 3,000 | Black・Blue | |||
| 45 | 2,000 | Black | ||
| 3,000 | Black | |||
| 65 | 2,000 | Black | ||
| 3,000 | Black | |||
| 100 | 2,000 | Black | ||
| 3,000 | Black | |||
| Blue | 100 | 2,000 | Black | |
| ASTM F712 Class 3 | Orange | 35 | 2,000 | Black |
| 2,500 | Black | |||
| 3,000 | Black | |||
