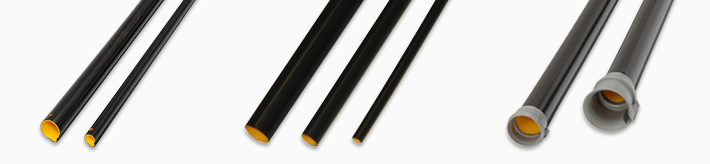

Tree Protection Pipe (abrasion resistant) LV
PRODUCT DESCRIPTION
・Designed to provide mechanical protection for aerial electric lines near trees and vegetation.
・A.C. proof test voltage is 1500V / 1min and A.C. maximum use voltage is 600V.
・Light weight and excellent UV properties.
・Available in a Variety of ID and lengths.
・Two layers, yellow inner layer and black outer layer.
・The product must be taken out of service when the outer layer is worn and the yellow inner is visible.
・Easy to install and secure interlocking (male/female).
SPEC
| Description | Type | Inner Diameter(mm) | Length(mm) |
|---|---|---|---|
| Tree Protection Pipe | Standard | 15 | 2,000 |
| 30 | 2,000 | ||
| Tree Protection Pipe with Flame Resistance | Flame Resistance | 12 | 60,000 |
| 25 | 3,000 | ||
| 52 | 3,000 |
